驱动开发：内核RIP劫持实现DLL注入

本章将探索内核级DLL模块注入实现原理，DLL模块注入在应用层中通常会使用CreateRemoteThread直接开启远程线程执行即可，驱动级别的注入有多种实现原理，而其中最简单的一种实现方式则是通过劫持EIP的方式实现，其实现原理可总结为，挂起目标进程，停止目标进程EIP的变换，在目标进程开启空间，并把相关的指令机器码和数据拷贝到里面去，然后直接修改目标进程EIP使其强行跳转到我们拷贝进去的相关机器码位置，执行相关代码后，然后再次跳转回来执行原始指令集。

内核RIP（Return Instruction Pointer）劫持是一种DLL（Dynamic Link Library）注入的实现方法之一，也被称为内核级别的DLL注入。该技术可以在操作系统内核层面实现DLL注入，从而实现对目标进程的代码执行进行操纵或者控制。

RIP劫持的实现过程中，注入代码会替换目标进程中某个指定函数的返回地址，将其指向注入代码的执行路径，从而在目标进程中执行注入代码。这个过程需要通过操作系统内核层级的系统调用或者API来完成，因此需要一定的系统编程和内核级别编程的技能和知识。

具体而言，RIP劫持可以通过以下步骤来实现DLL注入：

• 找到目标进程中需要被注入的函数的地址和返回地址，可以通过内存映射和内存分析等手段来实现。
• 在目标进程的内存空间中分配一段可执行代码的内存空间，将DLL的路径和函数名等信息写入其中。
• 将注入代码通过内核级别的系统调用或API注入到目标进程中的可执行内存空间中，同时将其返回地址替换为注入代码的执行路径。
• 当目标进程调用注入代码所替换的函数时，注入代码会被执行，完成DLL注入的任务。

需要注意的是，RIP劫持作为一种内核级别的注入技术，具有一定的风险和安全问题。同时，操作系统和安全软件中也可能存在相应的保护措施，可以防止或检测到这种注入方式，因此需要谨慎使用。

在内核模式中实现这一过程的具体方法可分为如下步骤；

• 1.通过PsLookupProcessByProcessId将进程PID转为EProcess结构
• 2.通过KeStackAttachProcess附加到目标进程
• 3.通过GetUserModule得到当前进程中Ntdll.dll模块的基址
• 4.通过GetModuleExport得到Ntdll.dll模块内LdrLoadDll函数基址
• 5.通过ZwGetNextThread得到当前线程句柄
• 6.通过PsSuspendThread暂停当前线程运行
• 7.此时通过GetWow64Code生成特定的加载代码，并放入ZwAllocateVirtualMemory生成的内存中
• 8.修改当前EIP的值指向newAddress内存地址
• 7.通过PsResumeThread恢复线程执行，让其执行我们的ShellCode代码
• 8.最后调用KeUnstackDetachProcess脱离目标进程，并释放句柄

首先需要定义一个标准头文件，并将其命名为lyshark.h其定义部分如下所示，此部分内容摘录于微软官方文档，如果需要了解结构体内的含义，请去自行查阅微软官方文档；

#include <ntifs.h>
#include <windef.h>
#include <intrin.h>
#include <ntimage.h>
#include <ntstrsafe.h>

// 线程结构体偏移值
#define MAXCOUNTS 0x200
#define INITIALSTACKOFFSET 0x28
#define WOW64CONTEXTOFFSET 0x1488
#define WOW64_SIZE_OF_80387_REGISTERS 80
#define WOW64_MAXIMUM_SUPPORTED_EXTENSION 512

// 导出函数
NTKERNELAPI PPEB NTAPI PsGetProcessPeb(IN PEPROCESS Process);

// 定义自定义函数指针
typedef PVOID(NTAPI* PPsGetThreadTeb)(IN PETHREAD Thread);
typedef PVOID(NTAPI* PPsGetProcessWow64Process)(_In_ PEPROCESS Process);
typedef NTSTATUS(NTAPI* PPsResumeThread)(PETHREAD Thread, OUT PULONG PreviousCount);
typedef NTSTATUS(NTAPI* PPsSuspendThread)(IN PETHREAD Thread, OUT PULONG PreviousSuspendCount OPTIONAL);
typedef NTSTATUS(NTAPI* PZwGetNextThread)(_In_ HANDLE ProcessHandle, _In_ HANDLE ThreadHandle, _In_ ACCESS_MASK DesiredAccess, _In_ ULONG HandleAttributes, _In_ ULONG Flags, _Out_ PHANDLE NewThreadHandle);

// 存放全局函数指针的变量
PPsGetThreadTeb g_PsGetThreadTeb = NULL;
PPsResumeThread g_PsResumeThread = NULL;
PPsSuspendThread g_PsSuspendThread = NULL;
PZwGetNextThread g_ZwGetNextThread = NULL;
PPsGetProcessWow64Process g_PsGetProcessWow64Process = NULL;

// 定义微软结构体
typedef struct _PEB_LDR_DATA32
{
	ULONG Length;
	UCHAR Initialized;
	ULONG SsHandle;
	LIST_ENTRY32 InLoadOrderModuleList;
	LIST_ENTRY32 InMemoryOrderModuleList;
	LIST_ENTRY32 InInitializationOrderModuleList;
} PEB_LDR_DATA32, *PPEB_LDR_DATA32;

typedef struct _PEB_LDR_DATA
{
	ULONG Length;
	UCHAR Initialized;
	PVOID SsHandle;
	LIST_ENTRY InLoadOrderModuleList;
	LIST_ENTRY InMemoryOrderModuleList;
	LIST_ENTRY InInitializationOrderModuleList;
} PEB_LDR_DATA, *PPEB_LDR_DATA;

typedef struct _LDR_DATA_TABLE_ENTRY32
{
	LIST_ENTRY32 InLoadOrderLinks;
	LIST_ENTRY32 InMemoryOrderLinks;
	LIST_ENTRY32 InInitializationOrderLinks;
	ULONG DllBase;
	ULONG EntryPoint;
	ULONG SizeOfImage;
	UNICODE_STRING32 FullDllName;
	UNICODE_STRING32 BaseDllName;
	ULONG Flags;
	USHORT LoadCount;
	USHORT TlsIndex;
	LIST_ENTRY32 HashLinks;
	ULONG TimeDateStamp;
} LDR_DATA_TABLE_ENTRY32, *PLDR_DATA_TABLE_ENTRY32;

typedef struct _LDR_DATA_TABLE_ENTRY
{
	LIST_ENTRY InLoadOrderLinks;
	LIST_ENTRY InMemoryOrderLinks;
	LIST_ENTRY InInitializationOrderLinks;
	PVOID DllBase;
	PVOID EntryPoint;
	ULONG SizeOfImage;
	UNICODE_STRING FullDllName;
	UNICODE_STRING BaseDllName;
	ULONG Flags;
	USHORT LoadCount;
	USHORT TlsIndex;
	LIST_ENTRY HashLinks;
	ULONG TimeDateStamp;
} LDR_DATA_TABLE_ENTRY, *PLDR_DATA_TABLE_ENTRY;

typedef struct _PEB32
{
	UCHAR InheritedAddressSpace;
	UCHAR ReadImageFileExecOptions;
	UCHAR BeingDebugged;
	UCHAR BitField;
	ULONG Mutant;
	ULONG ImageBaseAddress;
	ULONG Ldr;
	ULONG ProcessParameters;
	ULONG SubSystemData;
	ULONG ProcessHeap;
	ULONG FastPebLock;
	ULONG AtlThunkSListPtr;
	ULONG IFEOKey;
	ULONG CrossProcessFlags;
	ULONG UserSharedInfoPtr;
	ULONG SystemReserved;
	ULONG AtlThunkSListPtr32;
	ULONG ApiSetMap;
} PEB32, *PPEB32;

typedef struct _PEB
{
	UCHAR InheritedAddressSpace;
	UCHAR ReadImageFileExecOptions;
	UCHAR BeingDebugged;
	UCHAR BitField;
	PVOID Mutant;
	PVOID ImageBaseAddress;
	PPEB_LDR_DATA Ldr;
	PVOID ProcessParameters;
	PVOID SubSystemData;
	PVOID ProcessHeap;
	PVOID FastPebLock;
	PVOID AtlThunkSListPtr;
	PVOID IFEOKey;
	PVOID CrossProcessFlags;
	PVOID KernelCallbackTable;
	ULONG SystemReserved;
	ULONG AtlThunkSListPtr32;
	PVOID ApiSetMap;
} PEB, *PPEB;

typedef struct _KLDR_DATA_TABLE_ENTRY
{
	LIST_ENTRY InLoadOrderLinks;
	PVOID ExceptionTable;
	ULONG ExceptionTableSize;
	PVOID GpValue;
	ULONG UnKnow;
	PVOID DllBase;
	PVOID EntryPoint;
	ULONG SizeOfImage;
	UNICODE_STRING FullDllName;
	UNICODE_STRING BaseDllName;
	ULONG Flags;
	USHORT LoadCount;
	USHORT __Unused5;
	PVOID SectionPointer;
	ULONG CheckSum;
	PVOID LoadedImports;
	PVOID PatchInformation;
} KLDR_DATA_TABLE_ENTRY, *PKLDR_DATA_TABLE_ENTRY;

typedef struct _WOW64_FLOATING_SAVE_AREA
{
	DWORD ControlWord;
	DWORD StatusWord;
	DWORD TagWord;
	DWORD ErrorOffset;
	DWORD ErrorSelector;
	DWORD DataOffset;
	DWORD DataSelector;
	BYTE RegisterArea[WOW64_SIZE_OF_80387_REGISTERS];
	DWORD Cr0NpxState;
} WOW64_FLOATING_SAVE_AREA;

typedef struct _WOW64_CONTEXT
{
	DWORD padding;
	DWORD ContextFlags;
	DWORD Dr0;
	DWORD Dr1;
	DWORD Dr2;
	DWORD Dr3;
	DWORD Dr6;
	DWORD Dr7;
	WOW64_FLOATING_SAVE_AREA FloatSave;
	DWORD SegGs;
	DWORD SegFs;
	DWORD SegEs;
	DWORD SegDs;
	DWORD Edi;
	DWORD Esi;
	DWORD Ebx;
	DWORD Edx;
	DWORD Ecx;
	DWORD Eax;
	DWORD Ebp;
	DWORD Eip;
	DWORD SegCs;
	DWORD EFlags;
	DWORD Esp;
	DWORD SegSs;
	BYTE ExtendedRegisters[WOW64_MAXIMUM_SUPPORTED_EXTENSION];
} WOW64_CONTEXT, *PWOW64_CONTEXT;

// 自定义注入结构体
typedef struct _INJECT_BUFFER
{
	UCHAR Code[0x200];
	UNICODE_STRING Path;
	UNICODE_STRING32 Path32;
	wchar_t Buffer[488];
	PVOID ModuleHandle;
	ULONG Complete;
	NTSTATUS Status;
	ULONG64 orgRipAddress;
	ULONG64 orgRip;
} INJECT_BUFFER, *PINJECT_BUFFER;

特征码定位基址

在注入之前我们需要通过SearchOPcode()函数动态的寻找几个关键函数的基址，以PsSuspendThread函数的寻找为例，通过WinDBG我们可以定位到该函数，该函数模块在ntoskrnl.exe中，且无法直接通过MmGetSystemRoutineAddress拿到，为了能通过代码拿到该函数的入口地址，我提取fffff804204de668到fffff804204de670位置处的特征码，由于fffff804204de668距离PsSuspendThread函数开头只有24字节，所以直接通过-24即可得到。

通过调用SearchOPcode()并传入机器码即可直接拿到PsSuspendThread的入口地址，根据上述方式我们需要分别得到PsSuspendThread，PsResumeThread这几个函数的内存基址，这些函数的具体作用如下所示；

• PsSuspendThread() 用于暂停或者挂起线程
• PsResumeThread() 用于恢复线程

其次还需要通过MmGetSystemRoutineAddress函数动态的得到ZwGetNextThread，PsGetThreadTeb，PsGetProcessWow64Process这几个函数的基址，这些函数的具体作用如下所示；

• ZwGetNextThread() 用于获取下一个活动线程
• PsGetThreadTeb() 用于获取线程TEB结构
• PsGetProcessWow64Process() 判断当前进程是否为32位

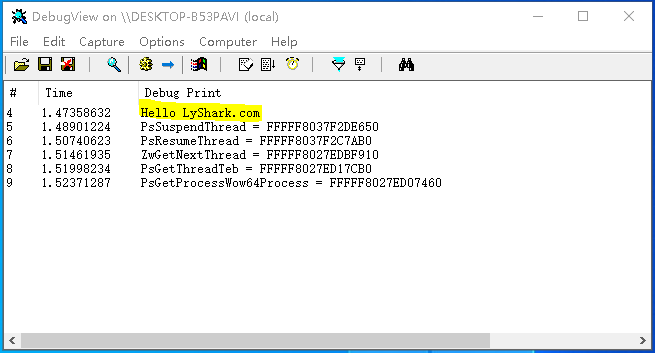

完整代码如下所示，运行这段代码将定位到我们所需的所有内核函数的基址信息；

#include "lyshark.h"

// 内核特征码定位函数封装
// 参数1：传入驱动句柄
// 参数2：传入驱动模块名
// 参数3：传入节表名称
// 参数4：传入待搜索机器码字节数组
// 参数5：传入机器码长度
// 参数6：基址修正字节数
PVOID SearchOPcode(PDRIVER_OBJECT pObj, PWCHAR DriverName, PCHAR sectionName, PUCHAR opCode, DWORD len, DWORD offset)
{
	PVOID dllBase = NULL;
	UNICODE_STRING uniDriverName;
	PKLDR_DATA_TABLE_ENTRY firstentry;

	// 获取驱动入口
	PKLDR_DATA_TABLE_ENTRY entry = (PKLDR_DATA_TABLE_ENTRY)pObj->DriverSection;

	firstentry = entry;
	RtlInitUnicodeString(&uniDriverName, DriverName);

	// 开始遍历
	while ((PKLDR_DATA_TABLE_ENTRY)entry->InLoadOrderLinks.Flink != firstentry)
	{
		if (entry->FullDllName.Buffer != 0 && entry->BaseDllName.Buffer != 0)
		{
			// 如果找到了所需模块则将其基地址返回
			if (RtlCompareUnicodeString(&uniDriverName, &(entry->BaseDllName), FALSE) == 0)
			{
				dllBase = entry->DllBase;
				break;
			}
		}
		entry = (PKLDR_DATA_TABLE_ENTRY)entry->InLoadOrderLinks.Flink;
	}

	if (dllBase)
	{
		__try
		{
			// 载入模块基地址
			PIMAGE_DOS_HEADER ImageDosHeader = (PIMAGE_DOS_HEADER)dllBase;
			if (ImageDosHeader->e_magic != IMAGE_DOS_SIGNATURE)
			{
				return NULL;
			}

			// 得到模块NT头以及Section节头
			PIMAGE_NT_HEADERS64 pImageNtHeaders64 = (PIMAGE_NT_HEADERS64)((PUCHAR)dllBase + ImageDosHeader->e_lfanew);
			PIMAGE_SECTION_HEADER pSectionHeader = (PIMAGE_SECTION_HEADER)((PUCHAR)pImageNtHeaders64 + sizeof(pImageNtHeaders64->Signature) + sizeof(pImageNtHeaders64->FileHeader) + pImageNtHeaders64->FileHeader.SizeOfOptionalHeader);

			PUCHAR endAddress = 0;
			PUCHAR starAddress = 0;

			// 寻找符合条件的节
			for (int i = 0; i < pImageNtHeaders64->FileHeader.NumberOfSections; i++)
			{
				if (memcmp(sectionName, pSectionHeader->Name, strlen(sectionName) + 1) == 0)
				{
					starAddress = pSectionHeader->VirtualAddress + (PUCHAR)dllBase;
					endAddress = pSectionHeader->VirtualAddress + (PUCHAR)dllBase + pSectionHeader->SizeOfRawData;
					break;
				}
				pSectionHeader++;
			}

			if (endAddress && starAddress)
			{
				// 找到会开始寻找特征
				for (; starAddress < endAddress - len - 1; starAddress++)
				{
					// 验证访问权限
					if (MmIsAddressValid(starAddress))
					{
						DWORD i = 0;
						for (; i < len; i++)
						{
							// 判断是否为通配符'*'
							if (opCode[i] == 0x2a)
							{
								continue;
							}

							// 找到了一个字节则跳出
							if (opCode[i] != starAddress[i])
							{
								break;
							}

						}
						// 找到次数完全匹配则返回地址
						if (i == len)
						{
							return starAddress + offset;
						}
					}
				}
			}
		}
		__except (EXCEPTION_EXECUTE_HANDLER) {}
	}

	return NULL;
}

NTSTATUS UnDriver(PDRIVER_OBJECT driver)
{
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(IN PDRIVER_OBJECT Driver, PUNICODE_STRING RegistryPath)
{
	DbgPrint("Hello LyShark.com \n");

	/*
	0: kd> uf PsSuspendThread
	nt!PsSuspendThread:
	fffff804`204de650 4889542410      mov     qword ptr [rsp+10h],rdx
	fffff804`204de655 48894c2408      mov     qword ptr [rsp+8],rcx
	fffff804`204de65a 53              push    rbx
	fffff804`204de65b 56              push    rsi
	fffff804`204de65c 57              push    rdi
	fffff804`204de65d 4156            push    r14
	fffff804`204de65f 4157            push    r15
	fffff804`204de661 4883ec30        sub     rsp,30h
	fffff804`204de665 4c8bf2          mov     r14,rdx
	fffff804`204de668 488bf9          mov     rdi,rcx
	fffff804`204de66b 8364242000      and     dword ptr [rsp+20h],0
	fffff804`204de670 65488b342588010000 mov   rsi,qword ptr gs:[188h]
	fffff804`204de679 4889742470      mov     qword ptr [rsp+70h],rsi
	fffff804`204de67e 66ff8ee4010000  dec     word ptr [rsi+1E4h]
	fffff804`204de685 4c8db9c8060000  lea     r15,[rcx+6C8h]
	fffff804`204de68c 4c897c2478      mov     qword ptr [rsp+78h],r15
	fffff804`204de691 498bcf          mov     rcx,r15
	fffff804`204de694 e8c7ff95ff      call    nt!ExAcquireRundownProtection (fffff804`1fe3e660)
	fffff804`204de699 84c0            test    al,al
	fffff804`204de69b 0f84495a1100    je      nt!PsSuspendThread+0x115a9a (fffff804`205f40ea)  Branch
	*/
	UCHAR SuspendOpCode[] = { 0x48, 0x8b, 0xf9, 0x83, 0x64, 0x24, 0x20, 0x00, 0x65, 0x48, 0x8b, 0x34, 0x25, 0x88, 0x01 };

	/*
	0: kd> uf PsResumeThread
	nt!PsResumeThread:
	fffff804`204c7ab0 48895c2408      mov     qword ptr [rsp+8],rbx
	fffff804`204c7ab5 4889742410      mov     qword ptr [rsp+10h],rsi
	fffff804`204c7aba 57              push    rdi
	fffff804`204c7abb 4883ec20        sub     rsp,20h
	fffff804`204c7abf 488bda          mov     rbx,rdx
	fffff804`204c7ac2 488bf9          mov     rdi,rcx
	fffff804`204c7ac5 e8ee4fa5ff      call    nt!KeResumeThread (fffff804`1ff1cab8)
	fffff804`204c7aca 65488b142588010000 mov   rdx,qword ptr gs:[188h]
	fffff804`204c7ad3 8bf0            mov     esi,eax
	fffff804`204c7ad5 83f801          cmp     eax,1
	fffff804`204c7ad8 7521            jne     nt!PsResumeThread+0x4b (fffff804`204c7afb)  Branch
	*/
	UCHAR ResumeOpCode[] = { 0x48, 0x8b, 0xf9, 0xe8, 0xee, 0x4f, 0xa5, 0xff, 0x65, 0x48, 0x8b, 0x14, 0x25, 0x88 };

	// 特征码检索PsSuspendThread函数基址
	g_PsSuspendThread = (PPsSuspendThread)SearchOPcode(Driver, L"ntoskrnl.exe", "PAGE", SuspendOpCode, sizeof(SuspendOpCode), -24);
	DbgPrint("PsSuspendThread = %p \n", g_PsSuspendThread);

	// 特征码检索PsResumeThread基址
	g_PsResumeThread = (PPsResumeThread)SearchOPcode(Driver, L"ntoskrnl.exe", "PAGE", ResumeOpCode, sizeof(ResumeOpCode), -18);
	DbgPrint("PsResumeThread = %p \n", g_PsResumeThread);

	// 动态获取内存中的ZwGetNextThread基址
	UNICODE_STRING ZwGetNextThreadString = RTL_CONSTANT_STRING(L"ZwGetNextThread");
	g_ZwGetNextThread = (PZwGetNextThread)MmGetSystemRoutineAddress(&ZwGetNextThreadString);
	DbgPrint("ZwGetNextThread = %p \n", g_ZwGetNextThread);

	// 动态获取内存中的PsGetThreadTeb基址
	UNICODE_STRING PsGetThreadTebString = RTL_CONSTANT_STRING(L"PsGetThreadTeb");
	g_PsGetThreadTeb = (PPsGetThreadTeb)MmGetSystemRoutineAddress(&PsGetThreadTebString);
	DbgPrint("PsGetThreadTeb = %p \n", g_PsGetThreadTeb);

	// 动态获取内存中的PsGetProcessWow64Process基址
	UNICODE_STRING PsGetProcessWow64ProcessString = RTL_CONSTANT_STRING(L"PsGetProcessWow64Process");
	g_PsGetProcessWow64Process = (PPsGetProcessWow64Process)MmGetSystemRoutineAddress(&PsGetProcessWow64ProcessString);
	DbgPrint("PsGetProcessWow64Process = %p \n", g_PsGetProcessWow64Process);

	Driver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

编译并运行如上代码片段，则会输出我们所需函数的入口地址，输出效果图如下所示；

获取模块基址

此函数的功能是获取到当前内核下特定模块的基址，函数接收三个参数，在入口DriverEntry位置通过KeStackAttachProcess附加到进程空间内，如果是32位进程则通过PsGetProcessWow64Process得到进程的PEB结构，如果是64位则通过PsGetProcessPeb得到PEB进程环境块的目的是为了解析PLIST_ENTRY32链表，通过RtlCompareUnicodeString对比模块是否符合要求，如果符合则在此链表中取出LdrDataTableEntry32->DllBase模块基址并返回给调用者，其完整代码片段如下所示；

• 1.通过KeStackAttachProcess附加到用户层进程空间内
• 2.通过各种函数获取到进程PEB进程环境块
• 3.遍历PLIST_ENTRY32链表，判断ModuleName是否所需
• 4.获取LdrDataTableEntry32->DllBase中的模块基址

#include "lyshark.h"

// 得到当前用户进程下的模块基址
// 参数1：传入用户EProcess结构
// 参数2：传入模块名
// 参数3：是否32位
PVOID GetUserModule(IN PEPROCESS EProcess, IN PUNICODE_STRING ModuleName, IN BOOLEAN IsWow64)
{
	if (EProcess == NULL)
		return NULL;
	__try
	{
		// 执行32位
		if (IsWow64)
		{
			// 获取32位下的PEB进程环境块
			PPEB32 Peb32 = (PPEB32)g_PsGetProcessWow64Process(EProcess);
			if (Peb32 == NULL)
				return NULL;

			if (!Peb32->Ldr)
				return NULL;

			// 循环遍历链表 寻找模块
			for (PLIST_ENTRY32 ListEntry = (PLIST_ENTRY32)((PPEB_LDR_DATA32)Peb32->Ldr)->InLoadOrderModuleList.Flink;
				ListEntry != &((PPEB_LDR_DATA32)Peb32->Ldr)->InLoadOrderModuleList;
				ListEntry = (PLIST_ENTRY32)ListEntry->Flink)
			{
				UNICODE_STRING UnicodeString;
				PLDR_DATA_TABLE_ENTRY32 LdrDataTableEntry32 = CONTAINING_RECORD(ListEntry, LDR_DATA_TABLE_ENTRY32, InLoadOrderLinks);

				// 初始化模块名
				RtlUnicodeStringInit(&UnicodeString, (PWCH)LdrDataTableEntry32->BaseDllName.Buffer);

				// 对比模块名是否符合
				if (RtlCompareUnicodeString(&UnicodeString, ModuleName, TRUE) == 0)
					return (PVOID)LdrDataTableEntry32->DllBase;
			}
		}
		// 执行64位
		else
		{
			// 得到64位PEB进程环境块
			PPEB Peb = PsGetProcessPeb(EProcess);
			if (!Peb)
				return NULL;

			if (!Peb->Ldr)
				return NULL;

			// 开始遍历模块
			for (PLIST_ENTRY ListEntry = Peb->Ldr->InLoadOrderModuleList.Flink;
				ListEntry != &Peb->Ldr->InLoadOrderModuleList;
				ListEntry = ListEntry->Flink)
			{
				// 得到表头
				PLDR_DATA_TABLE_ENTRY LdrDataTableEntry = CONTAINING_RECORD(ListEntry, LDR_DATA_TABLE_ENTRY, InLoadOrderLinks);

				// 判断是否是所需要的模块
				if (RtlCompareUnicodeString(&LdrDataTableEntry->BaseDllName, ModuleName, TRUE) == 0)
					return LdrDataTableEntry->DllBase;
			}
		}
	}
	__except (EXCEPTION_EXECUTE_HANDLER){}

	return NULL;
}

NTSTATUS UnDriver(PDRIVER_OBJECT driver)
{
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(IN PDRIVER_OBJECT Driver, PUNICODE_STRING RegistryPath)
{
	DbgPrint("Hello LyShark.com \n");

	// 动态获取内存中的PsGetProcessWow64Process基址
	UNICODE_STRING PsGetProcessWow64ProcessString = RTL_CONSTANT_STRING(L"PsGetProcessWow64Process");
	g_PsGetProcessWow64Process = (PPsGetProcessWow64Process)MmGetSystemRoutineAddress(&PsGetProcessWow64ProcessString);
	DbgPrint("PsGetProcessWow64Process = %p \n", g_PsGetProcessWow64Process);

	PEPROCESS pEprocess = NULL;
	DWORD pid = 6084;

	// 根据PID得到进程Eprocess结构
	if (NT_SUCCESS(PsLookupProcessByProcessId((HANDLE)pid, &pEprocess)))
	{
		// 初始化结构
		UNICODE_STRING ntdllString = RTL_CONSTANT_STRING(L"Ntdll.dll");

		KAPC_STATE kApc = { 0 };

		// 附加到进程内
		KeStackAttachProcess(pEprocess, &kApc);

		// 获取NTDLL的模块基地址
		PVOID ntdll_address = GetUserModule(pEprocess, &ntdllString, TRUE);
		if (ntdll_address != NULL)
		{
			DbgPrint("[*] Ntdll Addr = %p \n", ntdll_address);
		}

		// 取消附加
		KeUnstackDetachProcess(&kApc);

		// 递减计数
		ObDereferenceObject(pEprocess);
	}

	Driver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

运行如上这段程序，则会取出进程ID为6084中Ntdll.dll的模块基址，输出效果图如下所示；

取导出表函数基址

此函数的功能是获取到当前内核下特定模块中的特定函数（内存中）基址，函数接收两个参数，在入口DriverEntry位置通过KeStackAttachProcess附加到进程空间内，通过解析IMAGE_DIRECTORY_ENTRY_EXPORT导出表取出导出函数名，此处需要注意如果函数名指针小于等于0xFFFF则说明是序号导出，如果大于0xFFFF则说明是名字导出，判断名字是否一致，如果一致则返回当前内存的ModuleBase模块基址加上pAddressOfFuncs[OrdIndex]相对偏移，从而获取到内存中的绝对地址，完整代码片段如下所示；

#include "lyshark.h"

// 根据函数名得到导出表地址
// 参数1：传入模块入口地址
// 参数2：传入导出函数名
PVOID GetModuleExport(IN PVOID ModuleBase, IN PCCHAR FunctionName)
{
	PIMAGE_DOS_HEADER ImageDosHeader = (PIMAGE_DOS_HEADER)ModuleBase;
	PIMAGE_NT_HEADERS32 ImageNtHeaders32 = NULL;
	PIMAGE_NT_HEADERS64 ImageNtHeaders64 = NULL;
	PIMAGE_EXPORT_DIRECTORY ImageExportDirectory = NULL;
	ULONG ExportDirectorySize = 0;
	ULONG_PTR FunctionAddress = 0;

	if (ModuleBase == NULL)
		return NULL;

	__try
	{
		// 判断是否是DOS头
		if (ImageDosHeader->e_magic != IMAGE_DOS_SIGNATURE)
		{
			return NULL;
		}

		// 获取PE结构节NT头
		ImageNtHeaders32 = (PIMAGE_NT_HEADERS32)((PUCHAR)ModuleBase + ImageDosHeader->e_lfanew);
		ImageNtHeaders64 = (PIMAGE_NT_HEADERS64)((PUCHAR)ModuleBase + ImageDosHeader->e_lfanew);

		// 判断是否是64位
		if (ImageNtHeaders64->OptionalHeader.Magic == IMAGE_NT_OPTIONAL_HDR64_MAGIC)
		{
			// 如果是64位则执行如下
			ImageExportDirectory = (PIMAGE_EXPORT_DIRECTORY)(ImageNtHeaders64->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress + (ULONG_PTR)ModuleBase);
			ExportDirectorySize = ImageNtHeaders64->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].Size;
		}
		else
		{
			// 如果32位则执行如下
			ImageExportDirectory = (PIMAGE_EXPORT_DIRECTORY)(ImageNtHeaders32->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress + (ULONG_PTR)ModuleBase);
			ExportDirectorySize = ImageNtHeaders32->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].Size;
		}

		// 取出导出表Index，名字，函地址等
		PUSHORT pAddressOfOrds = (PUSHORT)(ImageExportDirectory->AddressOfNameOrdinals + (ULONG_PTR)ModuleBase);
		PULONG  pAddressOfNames = (PULONG)(ImageExportDirectory->AddressOfNames + (ULONG_PTR)ModuleBase);
		PULONG  pAddressOfFuncs = (PULONG)(ImageExportDirectory->AddressOfFunctions + (ULONG_PTR)ModuleBase);

		// 循环导出表
		for (ULONG i = 0; i < ImageExportDirectory->NumberOfFunctions; ++i)
		{
			USHORT OrdIndex = 0xFFFF;
			PCHAR  pName = NULL;

			// 说明是序号导出
			if ((ULONG_PTR)FunctionName <= 0xFFFF)
			{
				// 得到函数序号
				OrdIndex = (USHORT)i;
			}
			// 说明是名字导出
			else if ((ULONG_PTR)FunctionName > 0xFFFF && i < ImageExportDirectory->NumberOfNames)
			{
				// 得到函数名
				pName = (PCHAR)(pAddressOfNames[i] + (ULONG_PTR)ModuleBase);
				OrdIndex = pAddressOfOrds[i];
			}

			else
				return NULL;

			// 判断函数名是否符合
			if (((ULONG_PTR)FunctionName <= 0xFFFF && (USHORT)((ULONG_PTR)FunctionName) == OrdIndex + ImageExportDirectory->Base) ||
				((ULONG_PTR)FunctionName > 0xFFFF && strcmp(pName, FunctionName) == 0))
			{
				// 得到完整地址
				FunctionAddress = pAddressOfFuncs[OrdIndex] + (ULONG_PTR)ModuleBase;
				break;
			}
		}
	}
	__except (EXCEPTION_EXECUTE_HANDLER){}

	return (PVOID)FunctionAddress;
}

NTSTATUS UnDriver(PDRIVER_OBJECT driver)
{
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(IN PDRIVER_OBJECT Driver, PUNICODE_STRING RegistryPath)
{
	DbgPrint("Hello LyShark.com \n");

	PEPROCESS pEprocess = NULL;
	DWORD pid = 6084;

	// 根据PID得到进程Eprocess结构
	if (NT_SUCCESS(PsLookupProcessByProcessId((HANDLE)pid, &pEprocess)))
	{
		KAPC_STATE kApc = { 0 };

		// ntdll.dll模块基址
		PVOID ntdll_address = (PVOID)0x0000000077540000;

		// 附加到进程内
		KeStackAttachProcess(pEprocess, &kApc);

		// 取模块中LdrLoadDll函数基址
		PVOID LdrLoadDllAddress = GetModuleExport(ntdll_address, "LdrLoadDll");

		DbgPrint("[*] LdrLoadDllAddress = %p \n", LdrLoadDllAddress);

		// 取消附加
		KeUnstackDetachProcess(&kApc);

		// 递减计数
		ObDereferenceObject(pEprocess);
	}

	Driver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

编译并运行如上代码片段，即可获取到进程6084号，ntdll.dll模块中LdrLoadDll的内存地址，其输出效果图如下所示；

取当前线程上下文

此函数的功能是获取附加进程内当前线程的上下文地址，函数接收一个参数，内部通过PsLookupProcessByProcessId得到进程EProcess结构体，通过KeStackAttachProcess附加到进程内，调用g_ZwGetNextThread获取当当前线程上下文，函数ObReferenceObjectByHandle用于将Handle转换为线程对象，之后再通过g_PsSuspendThread暂停线程后，即可通过各类函数获取到该线程的绝大部分信息，最终在调用结束时记得调用g_PsResumeThread恢复线程的运行，并KeUnstackDetachProcess脱离附加，解析上下文环境完整代码如下所示；

#include "lyshark.h"

// ShellCode 注入线程函数
NTSTATUS GetCurrentContext(ULONG pid, PVOID* allcateAddress)
{
	PEPROCESS pEprocess = NULL;

	// 根据PID得到进程Eprocess结构
	if (NT_SUCCESS(PsLookupProcessByProcessId((HANDLE)pid, &pEprocess)))
	{
		KAPC_STATE kApc = { 0 };

		// 附加到进程内
		KeStackAttachProcess(pEprocess, &kApc);

		HANDLE threadHandle = NULL;

		// 得到当前正在运行的线程上下文
		if (NT_SUCCESS(g_ZwGetNextThread((HANDLE)-1, (HANDLE)0, 0x1FFFFF, 0x240, 0, &threadHandle)))
		{
			PVOID threadObj = NULL;

			// 在对象句柄上提供访问验证，如果可以授予访问权限，则返回指向对象的正文的相应指针。
			NTSTATUS state = ObReferenceObjectByHandle(threadHandle, 0x1FFFFF, *PsThreadType, KernelMode, &threadObj, NULL);
			if (NT_SUCCESS(state))
			{
				// 暂停线程
				g_PsSuspendThread(threadObj, NULL);

				__try
				{
					// 得到TEB
					PVOID pTeb = g_PsGetThreadTeb(threadObj);
					if (pTeb)
					{
						DbgPrint("[+] 线程环境块TEB = %p \n", pTeb);

						// 得到当前线程上下文
						/* WOW64CONTEXTOFFSET = TlsSlots + 8
							0: kd> dt _TEB
							nt!_TEB
							+ 0x000 NtTib            : _NT_TIB
							+ 0x1258 StaticUnicodeString : _UNICODE_STRING
							+ 0x1268 StaticUnicodeBuffer : [261] Wchar
							+ 0x1472 Padding3 : [6] UChar
							+ 0x1478 DeallocationStack : Ptr64 Void
							+ 0x1480 TlsSlots : [64] Ptr64 Void
							+ 0x1680 TlsLinks : _LIST_ENTRY
							+ 0x1690 Vdm : Ptr64 Void
							+ 0x1698 ReservedForNtRpc : Ptr64 Void
							+ 0x16a0 DbgSsReserved : [2] Ptr64 Void
						*/

						PWOW64_CONTEXT  pCurrentContext = (PWOW64_CONTEXT)(*(ULONG64*)((ULONG64)pTeb + WOW64CONTEXTOFFSET));
						DbgPrint("[-] 当前上下文EIP = %p \n", pCurrentContext->Eip);

						// 检查上下文是否可读
						ProbeForRead((PVOID)pCurrentContext, sizeof(pCurrentContext), sizeof(CHAR));

						UCHAR Code[] = {
							0xb8, 0x0, 0x0, 0x0, 0x0,        // mov eax, orgEip
							0x58,                            // pop eax
							0xc3                             // ret
						};

						// 将ShellCode拷贝到InjectBuffer中等待处理
						RtlCopyMemory(allcateAddress, Code, sizeof(Code));
						DbgPrint("[*] 拷贝 [%p] 内存 \n", allcateAddress);;

						// 修改代码模板，将指定位置替换为我们自己的代码
						*(ULONG*)((PUCHAR)allcateAddress + 1) = pCurrentContext->Eip;
						DbgPrint("[*] 替换 [ %p ] 跳转地址 \n", pCurrentContext->Eip);

						// 执行线程
						pCurrentContext->Eip = (ULONG)(ULONG64)(allcateAddress);
						DbgPrint("[*] 执行 [ %p ] 线程函数 \n", pCurrentContext->Eip);
					}
				}
				__except (EXCEPTION_EXECUTE_HANDLER) {}

				// 恢复线程
				g_PsResumeThread(threadObj, NULL);
				ObDereferenceObject(threadObj);
			}
			NtClose(threadHandle);
		}

		// 关闭线程
		KeUnstackDetachProcess(&kApc);
		ObDereferenceObject(pEprocess);
	}
	return STATUS_SUCCESS;
}

NTSTATUS UnDriver(PDRIVER_OBJECT driver)
{
	UNREFERENCED_PARAMETER(driver);
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(IN PDRIVER_OBJECT Driver, PUNICODE_STRING RegistryPath)
{
	DbgPrint("Hello LyShark.com \n");

	UNREFERENCED_PARAMETER(RegistryPath);

	// 初始化基址
	InitAddress(Driver);

	ULONG ProcessID = 4904;
	PVOID AllcateAddress = NULL;
	DWORD create_size = 1024;

	// 申请堆 《内核远程堆分配与销毁》核心代码
	NTSTATUS Status = AllocMemory(ProcessID, create_size, &AllcateAddress);

	// 执行ShellCode线程注入
	Status = GetCurrentContext(ProcessID, &AllcateAddress);

	Driver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

运行如上代码片段，则将输出进程ID=4904的当前进程内，线程上下文RIP地址，输出效果如下图所示；

驱动注入主功能

如上代码中我们已经找到了驱动注入时所需用到的关键函数，那么实现代码就变得很容易了，驱动注入的实现方式有很多种，不论哪一种其实现的难度并不在于代码本身，而在于某些结构如何正确的被找到，一旦结构被找到原理方面的代码可以说非常容易获取到，如下这段完整代码则是驱动注入的一个简化版，如果你觉得不方便完全可以自行添加IOCTL控制器让其更易于使用，此处为了节约篇幅不在增加冗余代码，代码已做具体分析和备注。

此注入驱动核心实现代码如下所示，其中SearchOPcode用于在内核模块中寻找符合条件的内存地址，GetNativeCode则用于生成一段可被调用的ShellCode代码，此代码执行的目的就是将DLL动态装载到对端内存中，SetThreadStartAddress则用于填充执行线程结构信息，GetUserModule用户获取进程内特定模块的基址，GetModuleExport用于在模块内寻找特定函数的基址，KernelInjectDLL则是最终注入函数，其首先将线程暂停，并注入生成的ShellCode，然后恢复线程让ShellCode跑起来，当ShellCode跑起来后将会自动的将特定目录下的DLL拉起来，以此来实现动态加载的目的。

#include "lyshark.h"

// 内核特征码定位函数封装
PVOID SearchOPcode(PDRIVER_OBJECT pObj, PWCHAR DriverName, PCHAR sectionName, PUCHAR opCode, int len, int offset)
{
	PVOID dllBase = NULL;
	UNICODE_STRING uniDriverName;
	PKLDR_DATA_TABLE_ENTRY firstentry;

	// 获取驱动入口
	PKLDR_DATA_TABLE_ENTRY entry = (PKLDR_DATA_TABLE_ENTRY)pObj->DriverSection;

	firstentry = entry;
	RtlInitUnicodeString(&uniDriverName, DriverName);

	// 开始遍历
	while ((PKLDR_DATA_TABLE_ENTRY)entry->InLoadOrderLinks.Flink != firstentry)
	{
		// 如果找到了所需模块则将其基地址返回
		if (entry->FullDllName.Buffer != 0 && entry->BaseDllName.Buffer != 0)
		{
			if (RtlCompareUnicodeString(&uniDriverName, &(entry->BaseDllName), FALSE) == 0)
			{
				dllBase = entry->DllBase;
				break;
			}
		}
		entry = (PKLDR_DATA_TABLE_ENTRY)entry->InLoadOrderLinks.Flink;
	}

	if (dllBase)
	{
		__try
		{
			// 载入模块基地址
			PIMAGE_DOS_HEADER ImageDosHeader = (PIMAGE_DOS_HEADER)dllBase;
			if (ImageDosHeader->e_magic != IMAGE_DOS_SIGNATURE)
			{
				return NULL;
			}
			// 得到模块NT头
			PIMAGE_NT_HEADERS64 pImageNtHeaders64 = (PIMAGE_NT_HEADERS64)((PUCHAR)dllBase + ImageDosHeader->e_lfanew);

			// 获取节表头
			PIMAGE_SECTION_HEADER pSectionHeader = (PIMAGE_SECTION_HEADER)((PUCHAR)pImageNtHeaders64 + sizeof(pImageNtHeaders64->Signature) + sizeof(pImageNtHeaders64->FileHeader) + pImageNtHeaders64->FileHeader.SizeOfOptionalHeader);

			PUCHAR endAddress = 0;
			PUCHAR starAddress = 0;

			// 寻找符合条件的节
			for (int i = 0; i < pImageNtHeaders64->FileHeader.NumberOfSections; i++)
			{
				// 寻找符合条件的表名
				if (memcmp(sectionName, pSectionHeader->Name, strlen(sectionName) + 1) == 0)
				{
					// 取出开始和结束地址
					starAddress = pSectionHeader->VirtualAddress + (PUCHAR)dllBase;
					endAddress = pSectionHeader->VirtualAddress + (PUCHAR)dllBase + pSectionHeader->SizeOfRawData;
					break;
				}
				// 遍历下一个节
				pSectionHeader++;
			}
			if (endAddress && starAddress)
			{
				// 找到会开始寻找特征
				for (; starAddress < endAddress - len - 1; starAddress++)
				{
					// 验证访问权限
					if (MmIsAddressValid(starAddress))
					{
						int i = 0;
						for (; i < len; i++)
						{
							// 判断是否为通配符'*'
							if (opCode[i] == 0x2a)
								continue;

							// 找到了一个字节则跳出
							if (opCode[i] != starAddress[i])
								break;
						}
						// 找到次数完全匹配则返回地址
						if (i == len)
						{
							return starAddress + offset;
						}
					}
				}
			}
		}
		__except (EXCEPTION_EXECUTE_HANDLER) {}
	}

	return NULL;
}

// 生成64位注入代码
PINJECT_BUFFER GetNativeCode(PVOID LdrLoadDll, PUNICODE_STRING DllFullPath, ULONGLONG orgEip)
{
	SIZE_T Size = PAGE_SIZE;
	PINJECT_BUFFER InjectBuffer = NULL;
	UCHAR Code[] = {
		0x41, 0x57,                             // push r15
		0x41, 0x56,                             // push r14
		0x41, 0x55,                             // push r13
		0x41, 0x54,                             // push r12
		0x41, 0x53,                             // push r11
		0x41, 0x52,                             // push r10
		0x41, 0x51,                             // push r9
		0x41, 0x50,                             // push r8
		0x50,                                   // push rax
		0x51,                                   // push rcx
		0x53,                                   // push rbx
		0x52,                                   // push rdx
		0x55,                                   // push rbp
		0x54,                                   // push rsp
		0x56,                                   // push rsi
		0x57,                                   // push rdi
		0x66, 0x9C,                             // pushf
		0x48, 0x83, 0xEC, 0x26,                 // sub rsp, 0x28
		0x48, 0x31, 0xC9,                       // xor rcx, rcx
		0x48, 0x31, 0xD2,                       // xor rdx, rdx
		0x49, 0xB8, 0, 0, 0, 0, 0, 0, 0, 0,     // mov r8, ModuleFileName   offset +38
		0x49, 0xB9, 0, 0, 0, 0, 0, 0, 0, 0,     // mov r9, ModuleHandle     offset +48
		0x48, 0xB8, 0, 0, 0, 0, 0, 0, 0, 0,     // mov rax, LdrLoadDll      offset +58
		0xFF, 0xD0,                             // call rax
		0x48, 0xBA, 0, 0, 0, 0, 0, 0, 0, 0,     // mov rdx, COMPLETE_OFFSET offset +70
		0xC7, 0x02, 0x7E, 0x1E, 0x37, 0xC0,     // mov [rdx], CALL_COMPLETE
		0x48, 0xBA, 0, 0, 0, 0, 0, 0, 0, 0,     // mov rdx, STATUS_OFFSET   offset +86
		0x89, 0x02,                             // mov [rdx], eax
		0x48, 0x83, 0xC4, 0x26,                 // add rsp, 0x28
		0x66, 0x9D,                             // popf
		0x5F,                                   // pop rdi
		0x5E,                                   // pop rsi
		0x5C,                                   // pop rsp
		0x5D,                                   // pop rbp
		0x5A,                                   // pop rdx
		0x5B,                                   // pop rbx
		0x59,                                   // pop rcx
		0x58,                                   // pop rax
		0x41, 0x58,                             // pop r8
		0x41, 0x59,                             // pop r9
		0x41, 0x5A,                             // pop r10
		0x41, 0x5B,                             // pop r11
		0x41, 0x5C,                             // pop r12
		0x41, 0x5D,                             // pop r13
		0x41, 0x5E,                             // pop r14
		0x41, 0x5F,                             // pop r15
		0x50,                                   // push rax
		0x50,                                   // push rax
		0x48, 0xB8, 0, 0, 0, 0, 0, 0, 0, 0,     // mov rax, orgEip offset +130
		0x48, 0x89, 0x44, 0x24, 0x08,           // mov [rsp+8],rax
		0x58,                                   // pop rax
		0xC3                                    // ret
	};

	// 在当前进程内分配内存空间
	if (NT_SUCCESS(ZwAllocateVirtualMemory(ZwCurrentProcess(), &InjectBuffer, 0, &Size, MEM_COMMIT, PAGE_EXECUTE_READWRITE)))
	{
		// 初始化路径变量与长度参数
		PUNICODE_STRING UserPath = &InjectBuffer->Path;
		UserPath->Length = DllFullPath->Length;
		UserPath->MaximumLength = DllFullPath->MaximumLength;
		UserPath->Buffer = InjectBuffer->Buffer;

		RtlUnicodeStringCopy(UserPath, DllFullPath);

		// 将ShellCode拷贝到InjectBuffer中等待处理
		memcpy(InjectBuffer, Code, sizeof(Code));

		// 修改代码模板，将指定位置替换为我们自己的代码
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 38) = (ULONGLONG)UserPath;
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 48) = (ULONGLONG)& InjectBuffer->ModuleHandle;
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 58) = (ULONGLONG)LdrLoadDll;
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 70) = (ULONGLONG)& InjectBuffer->Complete;
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 86) = (ULONGLONG)& InjectBuffer->Status;
		*(ULONGLONG*)((PUCHAR)InjectBuffer + 130) = orgEip;

		return InjectBuffer;
	}
	return NULL;
}

// 生成32位注入代码
PINJECT_BUFFER GetWow64Code(PVOID LdrLoadDll, PUNICODE_STRING DllFullPath, ULONG orgEip)
{
	SIZE_T Size = PAGE_SIZE;
	PINJECT_BUFFER InjectBuffer = NULL;

	UCHAR Code[] = {
		0x60,                                   // pushad
		0x9c,                                   // pushfd
		0x68, 0, 0, 0, 0,                       // push ModuleHandle            offset +3
		0x68, 0, 0, 0, 0,                       // push ModuleFileName          offset +8
		0x6A, 0,                                // push Flags
		0x6A, 0,                                // push PathToFile
		0xE8, 0, 0, 0, 0,                       // call LdrLoadDll              offset +17
		0xBA, 0, 0, 0, 0,                       // mov edx, COMPLETE_OFFSET     offset +22
		0xC7, 0x02, 0x7E, 0x1E, 0x37, 0xC0,     // mov [edx], CALL_COMPLETE
		0xBA, 0, 0, 0, 0,                       // mov edx, STATUS_OFFSET       offset +33
		0x89, 0x02,                             // mov [edx], eax
		0x9d,                                   // popfd
		0x61,                                   // popad
		0x50,                                   // push eax
		0x50,                                   // push eax
		0xb8, 0, 0, 0, 0,                       // mov eax, orgEip
		0x89, 0x44, 0x24, 0x04,                 // mov [esp+4],eax
		0x58,                                   // pop eax
		0xc3                                    // ret
	};

	/*
	如下代码中通过定义Code并写入调用模块加载的汇编指令集，通过运用ZwAllocateVirtualMemory在当前进程也就是附加到对端以后的进程内动态开辟了一块长度为Size的内存空间并赋予了PAGE_EXECUTE_READWRITE读写执行属性，
	由于Code代码无法直接使用，则此处调用RtlCopyMemory将指令拷贝到了InjectBuffer其目的是用于后续的填充工作，最后通过*(ULONG*)((PUCHAR)InjectBuffer + 3)的方式将需要使用的函数地址，
	模块信息等依次填充到汇编代码的指定位置，并返回InjectBuffer指针。
	*/

	// 在当前进程内分配内存空间
	if (NT_SUCCESS(ZwAllocateVirtualMemory(ZwCurrentProcess(), &InjectBuffer, 0, &Size, MEM_COMMIT, PAGE_EXECUTE_READWRITE)))
	{
		// 初始化路径变量与长度参数
		PUNICODE_STRING32 pUserPath = &InjectBuffer->Path32;
		pUserPath->Length = DllFullPath->Length;
		pUserPath->MaximumLength = DllFullPath->MaximumLength;
		pUserPath->Buffer = (ULONG)(ULONG_PTR)InjectBuffer->Buffer;

		// 将ShellCode拷贝到InjectBuffer中等待处理
		memcpy((PVOID)pUserPath->Buffer, DllFullPath->Buffer, DllFullPath->Length);
		memcpy(InjectBuffer, Code, sizeof(Code));

		// 修改代码模板，将指定位置替换为我们自己的代码
		*(ULONG*)((PUCHAR)InjectBuffer + 3) = (ULONG)(ULONG_PTR)& InjectBuffer->ModuleHandle;
		*(ULONG*)((PUCHAR)InjectBuffer + 8) = (ULONG)(ULONG_PTR)pUserPath;
		*(ULONG*)((PUCHAR)InjectBuffer + 17) = (ULONG)((ULONG_PTR)LdrLoadDll - ((ULONG_PTR)InjectBuffer + 17) - 5 + 1);
		*(ULONG*)((PUCHAR)InjectBuffer + 22) = (ULONG)(ULONG_PTR)& InjectBuffer->Complete;
		*(ULONG*)((PUCHAR)InjectBuffer + 33) = (ULONG)(ULONG_PTR)& InjectBuffer->Status;
		*(ULONG*)((PUCHAR)InjectBuffer + 44) = orgEip;
		return InjectBuffer;
	}

	return NULL;
}

// 设置线程执行地址
NTSTATUS SetThreadStartAddress(PETHREAD pEthread, BOOLEAN isWow64, PVOID LdrLoadDll, PUNICODE_STRING DllFullPath, PINJECT_BUFFER *allcateAddress)
{
	__try
	{
		// 判断是32位则执行
		if (isWow64)
		{
			// 得到线程TEB
			PVOID pTeb = g_PsGetThreadTeb(pEthread);
			if (pTeb)
			{
				// 得到当前线程上下文
				PWOW64_CONTEXT  pCurrentContext = (PWOW64_CONTEXT)(*(ULONG64*)((ULONG64)pTeb + WOW64CONTEXTOFFSET));

				// 检查上下文是否可读
				ProbeForRead((PVOID)pCurrentContext, sizeof(pCurrentContext), sizeof(CHAR));

				// 生成注入代码
				PINJECT_BUFFER newAddress = GetWow64Code(LdrLoadDll, DllFullPath, pCurrentContext->Eip);
				if (newAddress)
				{
					// 替换上下文地址到内存中
					newAddress->orgRipAddress = (ULONG64)& (pCurrentContext->Eip);
					newAddress->orgRip = pCurrentContext->Eip;
					*allcateAddress = newAddress;
					pCurrentContext->Eip = (ULONG)(ULONG64)(newAddress);
				}
				return STATUS_SUCCESS;
			}
		}
		// 执行64位代码
		else
		{
			// 验证地址是否可读取
			if (MmIsAddressValid((PVOID)* (ULONG64*)((ULONG64)pEthread + INITIALSTACKOFFSET)))
			{
				// 当前TID
				PKTRAP_FRAME pCurrentTrap = (PKTRAP_FRAME)(*(ULONG64*)((ULONG64)pEthread + INITIALSTACKOFFSET) - sizeof(KTRAP_FRAME));

				// 生成注入代码
				PINJECT_BUFFER newAddress = GetNativeCode(LdrLoadDll, DllFullPath, pCurrentTrap->Rip);
				if (newAddress)
				{
					// 替换当前RIP地址
					newAddress->orgRipAddress = (ULONG64)& (pCurrentTrap->Rip);
					newAddress->orgRip = pCurrentTrap->Rip;
					*allcateAddress = newAddress;
					pCurrentTrap->Rip = (ULONG64)newAddress;
				}
			}
			return STATUS_SUCCESS;
		}
	}
	__except (EXCEPTION_EXECUTE_HANDLER) {}

	return STATUS_UNSUCCESSFUL;
}

// 得到当前用户进程下的模块基址
PVOID GetUserModule(IN PEPROCESS EProcess, IN PUNICODE_STRING ModuleName, IN BOOLEAN IsWow64)
{
	if (EProcess == NULL)
		return NULL;
	__try
	{
		// 执行32位
		if (IsWow64)
		{
			// 获取32位下的PEB进程环境块
			PPEB32 Peb32 = (PPEB32)g_PsGetProcessWow64Process(EProcess);
			if (Peb32 == NULL)
				return NULL;

			if (!Peb32->Ldr)
				return NULL;

			// 循环遍历链表 寻找模块
			for (PLIST_ENTRY32 ListEntry = (PLIST_ENTRY32)((PPEB_LDR_DATA32)Peb32->Ldr)->InLoadOrderModuleList.Flink;
				ListEntry != &((PPEB_LDR_DATA32)Peb32->Ldr)->InLoadOrderModuleList;
				ListEntry = (PLIST_ENTRY32)ListEntry->Flink)
			{
				UNICODE_STRING UnicodeString;
				PLDR_DATA_TABLE_ENTRY32 LdrDataTableEntry32 = CONTAINING_RECORD(ListEntry, LDR_DATA_TABLE_ENTRY32, InLoadOrderLinks);

				// 初始化模块名
				RtlUnicodeStringInit(&UnicodeString, (PWCH)LdrDataTableEntry32->BaseDllName.Buffer);

				// 对比模块名是否符合
				if (RtlCompareUnicodeString(&UnicodeString, ModuleName, TRUE) == 0)
					return (PVOID)LdrDataTableEntry32->DllBase;
			}
		}
		// 执行64位
		else
		{
			// 得到64位PEB进程环境块
			PPEB Peb = PsGetProcessPeb(EProcess);
			if (!Peb)
				return NULL;

			if (!Peb->Ldr)
				return NULL;

			// 开始遍历模块
			for (PLIST_ENTRY ListEntry = Peb->Ldr->InLoadOrderModuleList.Flink;
				ListEntry != &Peb->Ldr->InLoadOrderModuleList;
				ListEntry = ListEntry->Flink)
			{
				// 得到表头
				PLDR_DATA_TABLE_ENTRY LdrDataTableEntry = CONTAINING_RECORD(ListEntry, LDR_DATA_TABLE_ENTRY, InLoadOrderLinks);

				// 判断是否是所需要的模块
				if (RtlCompareUnicodeString(&LdrDataTableEntry->BaseDllName, ModuleName, TRUE) == 0)
					return LdrDataTableEntry->DllBase;
			}
		}
	}
	__except (EXCEPTION_EXECUTE_HANDLER){}

	return NULL;
}

// 根据函数名得到导出表地址
PVOID GetModuleExport(IN PVOID ModuleBase, IN PCCHAR FunctionName)
{
	PIMAGE_DOS_HEADER ImageDosHeader = (PIMAGE_DOS_HEADER)ModuleBase;
	PIMAGE_NT_HEADERS32 ImageNtHeaders32 = NULL;
	PIMAGE_NT_HEADERS64 ImageNtHeaders64 = NULL;
	PIMAGE_EXPORT_DIRECTORY ImageExportDirectory = NULL;
	ULONG ExportDirectorySize = 0;
	ULONG_PTR FunctionAddress = 0;

	if (ModuleBase == NULL)
		return NULL;

	__try
	{
		// 判断是否是DOS头
		if (ImageDosHeader->e_magic != IMAGE_DOS_SIGNATURE)
		{
			return NULL;
		}

		// 获取PE结构节NT头
		ImageNtHeaders32 = (PIMAGE_NT_HEADERS32)((PUCHAR)ModuleBase + ImageDosHeader->e_lfanew);
		ImageNtHeaders64 = (PIMAGE_NT_HEADERS64)((PUCHAR)ModuleBase + ImageDosHeader->e_lfanew);

		// 判断是否是64位
		if (ImageNtHeaders64->OptionalHeader.Magic == IMAGE_NT_OPTIONAL_HDR64_MAGIC)
		{
			// 如果是64位则执行如下
			ImageExportDirectory = (PIMAGE_EXPORT_DIRECTORY)(ImageNtHeaders64->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress + (ULONG_PTR)ModuleBase);
			ExportDirectorySize = ImageNtHeaders64->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].Size;
		}
		else
		{
			// 如果32位则执行如下
			ImageExportDirectory = (PIMAGE_EXPORT_DIRECTORY)(ImageNtHeaders32->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].VirtualAddress + (ULONG_PTR)ModuleBase);
			ExportDirectorySize = ImageNtHeaders32->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_EXPORT].Size;
		}

		// 取出导出表Index，名字，函地址等
		PUSHORT pAddressOfOrds = (PUSHORT)(ImageExportDirectory->AddressOfNameOrdinals + (ULONG_PTR)ModuleBase);
		PULONG  pAddressOfNames = (PULONG)(ImageExportDirectory->AddressOfNames + (ULONG_PTR)ModuleBase);
		PULONG  pAddressOfFuncs = (PULONG)(ImageExportDirectory->AddressOfFunctions + (ULONG_PTR)ModuleBase);

		// 循环导出表
		for (ULONG i = 0; i < ImageExportDirectory->NumberOfFunctions; ++i)
		{
			USHORT OrdIndex = 0xFFFF;
			PCHAR  pName = NULL;

			// 说明是序号导出
			if ((ULONG_PTR)FunctionName <= 0xFFFF)
			{
				// 得到函数序号
				OrdIndex = (USHORT)i;
			}
			// 说明是名字导出
			else if ((ULONG_PTR)FunctionName > 0xFFFF && i < ImageExportDirectory->NumberOfNames)
			{
				// 得到函数名
				pName = (PCHAR)(pAddressOfNames[i] + (ULONG_PTR)ModuleBase);
				OrdIndex = pAddressOfOrds[i];
			}

			else
				return NULL;

			// 判断函数名是否符合
			if (((ULONG_PTR)FunctionName <= 0xFFFF && (USHORT)((ULONG_PTR)FunctionName) == OrdIndex + ImageExportDirectory->Base) ||
				((ULONG_PTR)FunctionName > 0xFFFF && strcmp(pName, FunctionName) == 0))
			{
				// 得到完整地址
				FunctionAddress = pAddressOfFuncs[OrdIndex] + (ULONG_PTR)ModuleBase;
				break;
			}
		}
	}
	__except (EXCEPTION_EXECUTE_HANDLER){}

	return (PVOID)FunctionAddress;
}

// DLL模块注入线程函数
NTSTATUS KernelInjectDLL(ULONG pid, PUNICODE_STRING DllFullPath, PINJECT_BUFFER* allcateAddress)
{
	PEPROCESS pEprocess = NULL;

	// 根据PID得到进程Eprocess结构
	if (NT_SUCCESS(PsLookupProcessByProcessId((HANDLE)pid, &pEprocess)))
	{
		KAPC_STATE kApc = { 0 };

		// 附加到进程内
		KeStackAttachProcess(pEprocess, &kApc);

		// 得到Ntdll.dll模块基址
		UNICODE_STRING ntdllString = RTL_CONSTANT_STRING(L"Ntdll.dll");
		PVOID NtdllAddress = GetUserModule(pEprocess, &ntdllString, g_PsGetProcessWow64Process(pEprocess) != 0);
		if (!NtdllAddress)
		{
			// 失败了则直接脱离附加
			KeUnstackDetachProcess(&kApc);
			ObDereferenceObject(pEprocess);
			return STATUS_UNSUCCESSFUL;
		}

		// 得到LdrLoadDLL模块的基址
		PVOID LdrLoadDll = GetModuleExport(NtdllAddress, "LdrLoadDll");
		if (!LdrLoadDll)
		{
			KeUnstackDetachProcess(&kApc);
			ObDereferenceObject(pEprocess);
			return STATUS_UNSUCCESSFUL;
		}

		HANDLE threadHandle = NULL;

		// 得到当前正在运行的线程上下文
		if (NT_SUCCESS(g_ZwGetNextThread((HANDLE)-1, (HANDLE)0, 0x1FFFFF, 0x240, 0, &threadHandle)))
		{
			PVOID threadObj = NULL;

			// 在对象句柄上提供访问验证，如果可以授予访问权限，则返回指向对象的正文的相应指针。
			NTSTATUS state = ObReferenceObjectByHandle(threadHandle, 0x1FFFFF, *PsThreadType, KernelMode, &threadObj, NULL);
			if (NT_SUCCESS(state))
			{
				// 暂停线程
				g_PsSuspendThread(threadObj, NULL);

				// 设置线程ShellCode代码
				SetThreadStartAddress(threadObj, g_PsGetProcessWow64Process(pEprocess) != 0, LdrLoadDll, DllFullPath, allcateAddress);

				// 恢复线程
				g_PsResumeThread(threadObj, NULL);
				ObDereferenceObject(threadObj);
			}
			NtClose(threadHandle);
		}

		// 关闭线程
		KeUnstackDetachProcess(&kApc);
		ObDereferenceObject(pEprocess);
	}
	return STATUS_SUCCESS;
}

NTSTATUS UnDriver(PDRIVER_OBJECT driver)
{
	UNREFERENCED_PARAMETER(driver);
	return STATUS_SUCCESS;
}

NTSTATUS DriverEntry(IN PDRIVER_OBJECT Driver, PUNICODE_STRING RegistryPath)
{
	DbgPrint("Hello LyShark.com \n");

	UNREFERENCED_PARAMETER(RegistryPath);

	// -----------------------------------------------------------------------
	// 初始化
	// -----------------------------------------------------------------------
	UCHAR SuspendOpCode[] = { 0x48, 0x8b, 0xf9, 0x83, 0x64, 0x24, 0x20, 0x00, 0x65, 0x48, 0x8b, 0x34, 0x25, 0x88, 0x01 };
	UCHAR ResumeOpCode[] = { 0x48, 0x8b, 0xf9, 0xe8, 0xee, 0x4f, 0xa5, 0xff, 0x65, 0x48, 0x8b, 0x14, 0x25, 0x88 };

	// 特征码检索PsSuspendThread函数基址
	g_PsSuspendThread = (PPsSuspendThread)SearchOPcode(Driver, L"ntoskrnl.exe", "PAGE", SuspendOpCode, sizeof(SuspendOpCode), -24);
	DbgPrint("PsSuspendThread = %p \n", g_PsSuspendThread);

	// 特征码检索PsResumeThread基址
	g_PsResumeThread = (PPsResumeThread)SearchOPcode(Driver, L"ntoskrnl.exe", "PAGE", ResumeOpCode, sizeof(ResumeOpCode), -18);
	DbgPrint("PsResumeThread = %p \n", g_PsResumeThread);

	// 动态获取内存中的ZwGetNextThread基址
	UNICODE_STRING ZwGetNextThreadString = RTL_CONSTANT_STRING(L"ZwGetNextThread");
	g_ZwGetNextThread = (PZwGetNextThread)MmGetSystemRoutineAddress(&ZwGetNextThreadString);
	DbgPrint("ZwGetNextThread = %p \n", g_ZwGetNextThread);

	// 动态获取内存中的PsGetThreadTeb基址
	UNICODE_STRING PsGetThreadTebString = RTL_CONSTANT_STRING(L"PsGetThreadTeb");
	g_PsGetThreadTeb = (PPsGetThreadTeb)MmGetSystemRoutineAddress(&PsGetThreadTebString);
	DbgPrint("PsGetThreadTeb = %p \n", g_PsGetThreadTeb);

	// 动态获取内存中的PsGetProcessWow64Process基址
	UNICODE_STRING PsGetProcessWow64ProcessString = RTL_CONSTANT_STRING(L"PsGetProcessWow64Process");
	g_PsGetProcessWow64Process = (PPsGetProcessWow64Process)MmGetSystemRoutineAddress(&PsGetProcessWow64ProcessString);
	DbgPrint("PsGetProcessWow64Process = %p \n", g_PsGetProcessWow64Process);

	// -----------------------------------------------------------------------
	// 注入代码
	// -----------------------------------------------------------------------

	ULONG ProcessID = 984;
	UNICODE_STRING InjectDllPath = RTL_CONSTANT_STRING(L"C:\\Users\\lyshark\\Desktop\\hook.dll");
	PINJECT_BUFFER AllcateAddress = NULL;

	// 执行线程注入
	NTSTATUS Status = KernelInjectDLL(ProcessID, &InjectDllPath, &AllcateAddress);
	if (Status == STATUS_SUCCESS)
	{
		DbgPrint("[*] 线程注入PID = %d | DLL = %wZ \n", ProcessID, InjectDllPath);
	}

	Driver->DriverUnload = UnDriver;
	return STATUS_SUCCESS;
}

首先你需要自行准备好一个DLL文件，此处我的是hook.dll将文件放入到桌面，然后设置ProcessID指定进程ID，设置InjectDllPath指定DLL路径，签名后将驱动加载起来，此时你会看到WinDBG中的输出，且应用层的进程也会弹出hello lyshark的消息，说明注入成功了，如下图所示；
